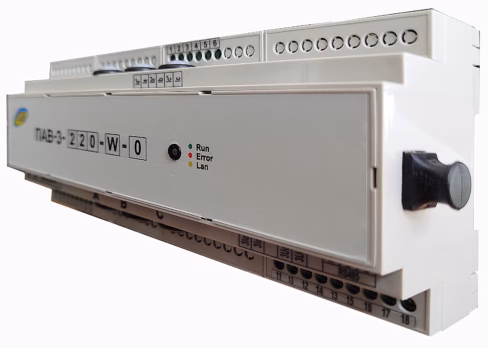

Device ПАВ-3 AИAР.426449.003

Device ПАВ-3 AИAР.426449.003 5498
Device ПАВ-3 AИAР.426449.003 5499

The ПАВ-3 device is designed to measure the effective currents, voltages, power and convert to the Modbus RTU exchange protocol, and Ethernet interface (RJ-45) - IEC 60870-5 104 exchange protocol (optional).

ParameterRangePrecision
The effective value of phase (A, B, C) currents, A0,2 – 1004%
The effective value of phase (3I0) currents, A0,01 - 54%
Current values of linear (phase) voltage, V1-125±5V
Full power, kVA0-99994%
Active power, kW0-99994%
Reactive power, kVAr0-99994%
Power factor-1 ... 14%
Rated current TT, A20-800
Supply voltage AC (DC), V90-264 (125-370)
